Particle Sizer
ANALYSETTE 28
ImageSizerEach ANALYSETTE 28 ImageSizer with USB-interface is delivered with a computer* with already installed ImageSizing-Software ISS, monitor, keyboard and mouse.
*Except deliveries to CIS countries
Choose according to your measuring task dry or wet measurement!
For dry measurement please order lenses according to the desired measuring range.
For wet measurement please select one of the wet dispersion units, lenses according to the desired measuring range and if required ultrasonic box separately.
For representative sample division - the foundation of any precise analysis - we recommend the
Rotary Cone Sample Divider LABORETTE 27
Maintenance and Recalibration of your Particle Sizer on request. Colour ink jet printer and laser printer on request.
Lenses for dry measurement of powders and bulk solids
Choose according to your measurement task the right lens!
In order to use the ANALYSETTE 28 ImageSizer you will need at least one telecentric lens. Three telecentric lenses with different measuring ranges are available. Order the desired lenses separately according to the measuring task. They can all be retrofitted at any time, and are easy to replace.
Lenses with holder, feeder and funnel
Telecentric lens enlargement 0.157x with feeder 50 mm and sample funnel 2000 ml (measuring range ~ 90 µm – 20 mm, depth of field ~ 27 mm), for dry measurement of powders and bulk solids.
Telecentric lens enlargement 0.243x with feeder 50 mm and sample funnel 2000 ml (measuring range ~ 60 µm – 14.5 mm, depth of field ~ 11 mm), for dry measurement of powders and bulk solids.
Telecentric lens enlargement 0.35x with feeder 20 mm and sample funnel 250 ml (measuring range ~ 40 µm – 9 mm, depth of field ~ 5 mm), for dry measurement of powders and bulk solids.
Telecentric lens enlargement 0.735x with feeder 20 mm and sample funnel 250 ml (measuring range ~ 20 µm – 4.5 mm, depth of field ~ 1.2 mm), for dry measurement of powders and bulk solids.
Dispersion units and lenses for wet measuring of suspensions and emulsions
Select one wet dispersion unit and according to your measurement task the right lens and accessories!
Wet dispersion is particularly suitable for fine particles, poorly flowing, fine-agglomerating or sticky materials, which do not react in water or other liquids. Select an ultrasonic box if you frequently measure sample material that tends to agglomerate.
Wet dispersion units and Ultrasonic box
Wet dispersion unit incl. flow measuring cell for automatic dispersion, volume 150-500 ml - suitable for dispersion liquids like water, alcohol and many organic solvents.
A powerful centrifugal pump with individually adjustable speed ensures optimal transport of even heavy, high density particles in the wet dispersion unit – enabling fast, uniform distribution of the sample material in the entire circuit. SOP’s for easy operation, the completely free programmable dispersion process, the automatic cleaning ensure fast and reproducible measuring results.
All parts inside the wet dispersion unit, which come into contact with the dispersion medium are made of high-quality stainless steel 316L, PTFE, FFKM, FEP, POM, BK7 glass and FKM. The connection hoses and the drain hose are made of silicone.
If you are working with extremely aggressive chemical dispersion liquids, order the wet dispersion unit EXTENDED for extreme chemical resistance with article number 28.2700.00. A list providing an overview of chemicals can be downloaded here.
Read details about our wet dispersion unit
Wet dispersion unit EXTENDED incl. flow measuring cell for automatic dispersion, volume 150-500 ml - suitable for extremely aggressive chemical dispersion liquids.
A powerful centrifugal pump with individually adjustable speed ensures optimal transport of even heavy, high density particles in the wet dispersion unit – enabling fast, uniform distribution of the sample material in the entire circuit. SOP’s for easy operation, the completely free programmable dispersion process, the automatic cleaning ensure fast and reproducible measuring results.
All parts inside the wet dispersion unit EXTENDED, which come into contact with the dispersion medium are made of high-quality stainless steel 316L, PTFE, FFKM, FEP and BK7 glass. The connection hoses are made of silicone, inside of hoses made of FEP and the drain hose is made of TPE. For dispersion liquids, such as water, alcohol or most organic solvents, wet dispersion, article number 28.2600.00, is sufficient. A list providing an overview of chemicals can be downloaded here.
Read details about our wet dispersion unit
for dispersion with ultrasonic with max. 50 Watt ultrasonic output,
variably adjustable for 200-240 V/1~, 50-60 Hz, 60 Watt
If you measure sample material frequently that tends to agglomerate, you can equip your ANALYSETTE additionally with a powerful ultrasonic box which is simply inserted into the sample circulation system. It allows for an even finer adjustment of the wet dispersion to the respective sample material and operates extremely quietly with less than 45 dB.
All parts inside the ultrasonic box, which come into contact with the dispersion medium are made of high-quality stainless steel 316Land FFKM.
for dispersion with ultrasonic with max. 50 Watt ultrasonic output,
variably adjustable for 100-120 V/1~, 50-60 Hz, 60 Watt
If you measure sample material frequently that tends to agglomerate, you can equip your ANALYSETTE additionally with a powerful ultrasonic box which is simply inserted into the sample circulation system. It allows for an even finer adjustment of the wet dispersion to the respective sample material and operates extremely quietly with less than 45 dB.
All parts inside the ultrasonic box, which come into contact with the dispersion medium are made of high-quality stainless steel 316L and FFKM.
for covering the sample bath of the wet dispersion unit.
The cover provides safe splash protection during filling, dispersion and rinsing.

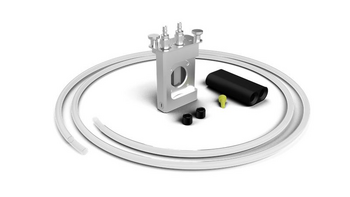

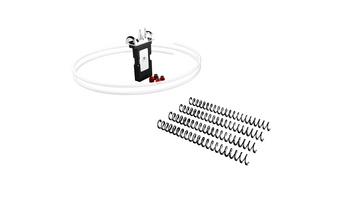

With the connection kit for the wet module, the A-28 and A-22 can be combined with each other.
Lenses with holder
Telecentric lens enlargement 0.35x (measuring range ~ 20 µm – 3000 µm, depth of field ~ 5 mm), for wet measurement of suspensions and bulk emulsions.
Telecentric lens enlargement 0.735x (measuring range ~ 10 µm – 2000 µm, depth of field ~ 1.2 mm), for wet measurement of suspensions and bulk emulsions.
Telecentric lens enlargement 1.333x (measuring range ~ 5 µm – 1000 µm, depth of field ~ 0.5 mm), for wet measurement of suspensions and bulk emulsions.
Spare parts for wet dispersion unit
Replacement measuring cell glass 4 mm for inserting into the flow measuring cell of the wet dispersion unit 28.2600.00.
Easy cleaning and exchange of the measuring cell
The measuring cell for the ANALYSETTE 28 ImageSizer is simply inserted from the front into the instrument as a practical cartridge and can be opened without tools with an eccentric lock. Its cleaning is quite convenient by an easily re-insertable outer seal. And also the exchange of the measuring cell glasses can be done any time completely uncomplicated.
Accessories for certified calibration
For certified calibration of the Particle Sizer ANALYSETTE 28 ImageSizer, two different calibration plates are offered. Please choose the appropriate calibration plate according to the lens used.
calibration plates
Calibration plate with 0.5 mm dots with certificate for telecentric lenses enlargement 0.157x, 0.243x and 0.35x.
Calibration plate with 0.125 mm dots with certificate for telecentric lenses enlargement 0.735x and 1.333x
IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Particle Sizer ANALYSETTE 28 ImageSizer.
